Early recognition
Flame signatures and intelligent analysis support early judgement in complex conditions.
Special Fire Detection
Point Flame Detector
Infrared and ultraviolet sensing elements and intelligent algorithms analyze flame radiation for early fire recognition in complex environments.
Product Profile
Early warningFast recognition of flame radiation signatures
Product Overview
Capabilities and functional features
The presentation cites GB 15631-2008 and GB 12791-2006 as the main design references. Real-time flame parameters are converted to electrical signals for analysis and alarm output.
Interference resistance
Designed to distinguish common radiation sources such as sunlight, artificial light and hot objects.
Indoor and outdoor use
Waterproof, explosion-protected enclosure design.
Applications
Where It Fits
For areas where open flame can develop rapidly, smoke may not accumulate, or non-contact detection is required.
Industrial hazard areas
Petrochemical, gas, storage and production areas where open flame may develop rapidly.
Road and underwater tunnels
Can complement distributed fiber heat detection on extended tunnel routes.
Large open spaces
For spaces where smoke disperses and line-of-sight flame detection is useful.
Specifications
Key Technical Data
The following key technical data supports product evaluation and preliminary selection.
Design referencesGB 15631-2008 and GB 12791-2006
Detection methodInfrared and ultraviolet flame radiation monitoring
EnclosureSource material states waterproof and explosion-protected design
Note: Final model, configuration, parameters and certification status are subject to confirmed product documents, test reports and project selection.
Installation

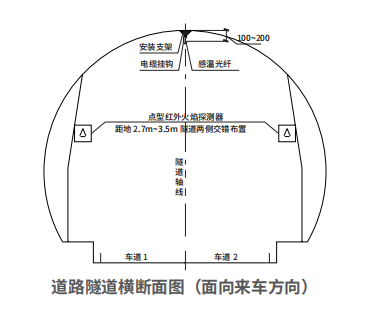

Typical Installation Concepts
Verify field of view, maximum distance and obstructions, and prevent strong light from shining directly into the detection window.
Documents
Product and Technical Documents
Product brochures, test reports and installation documents will be provided after their approved disclosure scope is confirmed.
Product Enquiry
Need to confirm the right configuration for your site?
Protected area, route length, environmental conditions and existing alarm-system information help us understand the requirement.
