Online temperature field
Continuously monitors thermal information across the protected area.
Image Fire Detection
Image Fire Detector
Thermal imaging, visible video and intelligent analysis identify fire and temperature anomalies and provide visual verification and linkage outputs.
Product Profile
8 mmLens used in the typical installation example
Product Overview
Capabilities and functional features
Image processing and intelligent analysis help distinguish real fire from interference such as lighting, solar radiation and arc welding in bright, hot or dusty environments.
Dual-video verification
Combines thermal and visible imagery to support site assessment.
Multiple outputs
Provides alarm and fault signals and can link to a suppression system.
Platform reporting
Fault and fire information can be uploaded over the network.
Applications
Where It Fits
For large or complex spaces requiring long-range monitoring, video verification or suppression linkage.
Large open spaces
Aircraft hangars, high-bay warehouses, stations, arenas, exhibition halls and atriums.
Long tunnels
Road, rail, urban, underwater and utility tunnels.
Industrial hazards
Transformer rooms, pump rooms, chemical plants, tank farms and waste facilities.
Important special buildings
Historic buildings, underground spaces, communication sites and restricted-access areas.
Specifications
Key Technical Data
The following key technical data supports product evaluation and preliminary selection.
Example lens8 mm
Horizontal field of view32°
Vertical field of view24°
OutputsFire, fault, network data and suppression linkage signals
Note: Final model, configuration, parameters and certification status are subject to confirmed product documents, test reports and project selection.

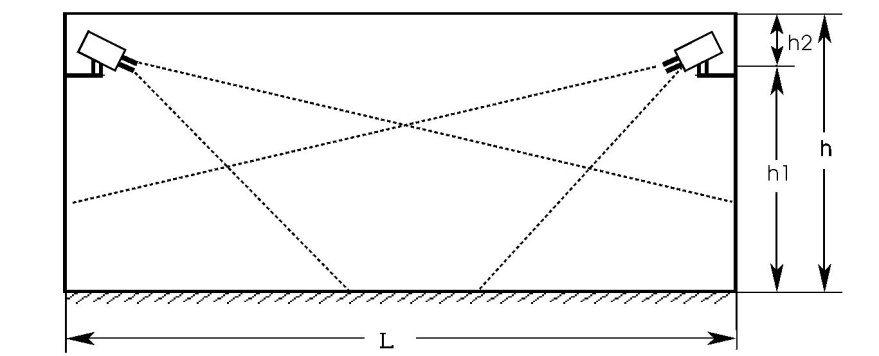

Installation
Typical Installation Concepts
Choose the mounting position around lens field of view, coverage distance and site obstructions to minimize blind zones.
Documents
Product and Technical Documents
Product brochures, test reports and installation documents will be provided after their approved disclosure scope is confirmed.
Product Enquiry
Need to confirm the right configuration for your site?
Protected area, route length, environmental conditions and existing alarm-system information help us understand the requirement.
